Detailed Product Description – U200 Composite Drainage Channel

Technical Specifications & Pricing Notice

The technical specifications and product dimensions provided in this article have been carefully measured and verified by our engineering team. Dimensional tolerances are within ±2 mm (±0.08 in.).

For the latest technical specifications and pricing, please contact our Sales Department at Hotline: +84 936 629 323 before placing your order.

Premium Fiberglass Composite Material

The product is manufactured from high-purity resin reinforced with continuous fiberglass strands, creating a premium SMC (Sheet Molding Compound) composite that is environmentally friendly, lightweight, and exceptionally durable.

In Stock & Ready to Ship

The U200 Composite Drainage Channel is currently in stock and available in multiple color options, providing an attractive appearance that complements modern commercial, industrial, and municipal projects.

Fast Nationwide Delivery

We offer fast nationwide shipping along with professional customer service provided by our experienced engineering and technical support team.

Superior Performance

The U200 Composite Drainage Channel represents a next-generation drainage solution engineered for outstanding durability and environmental sustainability. It offers excellent resistance to chemicals, corrosion, and harsh outdoor environments while providing a long service life with minimal maintenance.

U-Shaped Design for Superior Drainage Performance

The U200 Composite Drainage Channel is an essential component of urban, industrial, and commercial drainage systems. Understanding its construction helps engineers, contractors, and project owners select the most appropriate drainage solution.

A standard U200 Composite Drainage Channel System consists of two primary components:

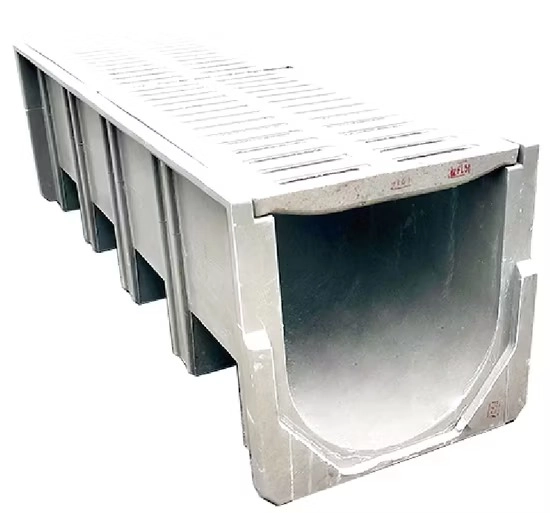

Drainage Channel Body

The channel body features a U-shaped profile that efficiently collects and conveys stormwater.

Manufactured from Fiberglass Reinforced Plastic (FRP), it provides:

• Excellent UV resistance
• Outstanding resistance to chemicals and corrosion
• High structural strength
• Lightweight construction
• Long service life

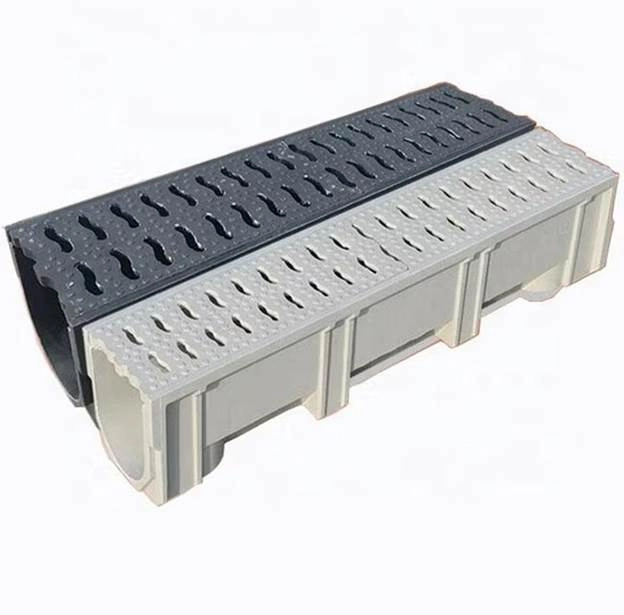

Drainage Grate (Channel Cover)

The drainage grate consists of two removable cover panels that protect the channel while improving safety and cleanliness.

The wave-shaped openings allow water to flow freely while minimizing debris accumulation.

Manufactured entirely from environmentally friendly SMC composite, the grate is capable of supporting loads of up to 1.5 tons (A15 Load Class).

The Critical Role of Drainage Channels in Urban Infrastructure

The U200 Composite Drainage Channel is much more than a supporting infrastructure component—it functions as the "circulatory system" of modern cities. In urban planning and infrastructure development, composite drainage channels play a critical role by:

Reducing Urban Flooding

In areas frequently affected by heavy rainfall or tidal flooding, durable composite drainage channels help maintain consistent water flow, minimize blockages, and improve drainage efficiency.

As a result, cities can reduce flood damage while improving public safety and protecting critical infrastructure.

Protecting Infrastructure

Standing water can rapidly deteriorate sidewalks, concrete pavements, asphalt roads, and building foundations through erosion, settlement, and surface deterioration.

For residential communities and industrial facilities, prolonged moisture exposure may also:

• Shorten the service life of structures
• Damage underground electrical systems
• Encourage mold and mildew growth

•

Supporting Sustainable, Clean, and Attractive Cities

Modern drainage systems successfully combine engineering performance with architectural aesthetics.

High-quality fiberglass composite grates provide exceptional durability while enhancing the appearance of sidewalks, public spaces, commercial developments, and municipal infrastructure.

U200 Composite Drainage Channel – A Preferred Solution for Modern Projects

The U200 Composite Drainage Channel has become one of the preferred choices for today's infrastructure projects because of its outstanding performance.

Its optimized U-shaped profile and carefully engineered curvature allow water to flow approximately 30% faster than conventional drainage channels while significantly reducing sediment buildup.

Manufactured from ultra-durable composite materials, the channel features an exceptionally smooth interior surface that minimizes debris adhesion and simplifies maintenance.

The U-shaped design also provides excellent structural integrity, allowing the channel to withstand heavy traffic loads without deformation.

Urban planners and civil engineers value this solution because individual sections can be connected into continuous drainage systems extending for miles while maintaining watertight joints through advanced interlocking connection technology.

Why the U200 Composite Drainage Channel Is So Popular

Among today's drainage channel designs, the U200 Composite Drainage Channel is one of the most widely used because of several key advantages.

Easy Installation and Maintenance

Contractors and engineers appreciate the system's ease of installation and maintenance.

Each channel section has a standard length of 1,000 mm (39.37 inches) and features an integrated design that allows quick installation similar to a modular assembly system without requiring specialized equipment.

Excellent Hydraulic Performance

The U-shaped channel is engineered to maximize hydraulic efficiency.

Its optimized channel geometry—with a typical width-to-depth ratio of approximately 1:1.5 and an effective flow width of 200–300 mm (7.9–11.8 inches)—allows water velocities of approximately 0.8–1.2 m/s (2.6–3.9 ft/s).

This flow rate is strong enough to carry away debris while minimizing erosion.

Compatible with Multiple Drainage Grates

The U200 Composite Drainage Channel features an intelligent connection system compatible with a wide range of drainage grates available on the market.

Its versatile joint design incorporates precision-engineered connection grooves manufactured under ISO 9001 quality management standards, ensuring secure installation, excellent sealing performance, and long-term reliability throughout the drainage system.
